New toerail

Four x 4 metre lengths of L-shaped  iroko moulding were made to order by Covers of Chichester to cover the hull/deck joint.

After the hull/deck joint had been repaired and the deck resprayed, these were bedded on Sikoflex and fixed approximately every 250mm with 55mm self tapping screws.

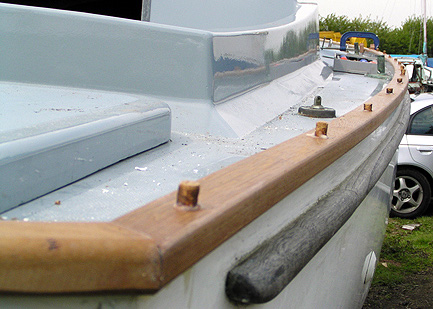

rail1

The screws were set approximately 4mm below the surface to enable iroko plugs to be used to cover the screws.

plugless

Fixings were started aft and the wood was easily bent to the curve of the deck by hand and held in place with a few G-clamps.

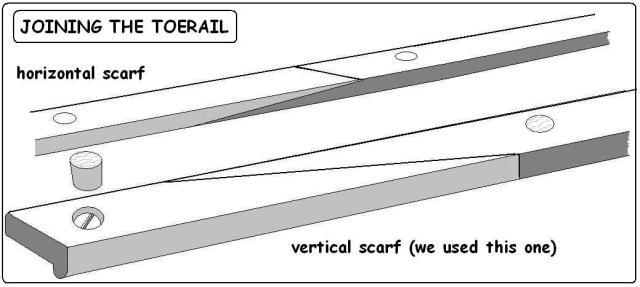

Two lengths were used each side necessitating a 12:1 scarph midway.  This could be done horizontally or vertically.

scarph

We decided to do it vertically as this allowed the epoxied joint to be made in situ and could be more easily supported with clamps for a week or two until fully cured.  The blue clamps supporting the scarph can be seen in the photographs above.

The taffrail across the back was prefabricated and there we used a horizontal scarph because:

  • the curve in the wood of the taffrail was preformed by cutting and not by bending across the back of the transom so the joint could be made before fitting and was not subjected to twisting or shearing movement.
  • it provides a greater glued surface area.

corner

The toerail was trimmed to fit into the bronze bow fitting and the fabricated taffrail was mitred at the stern.

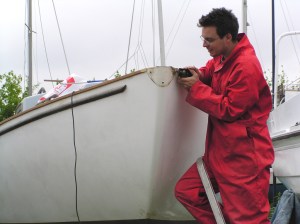

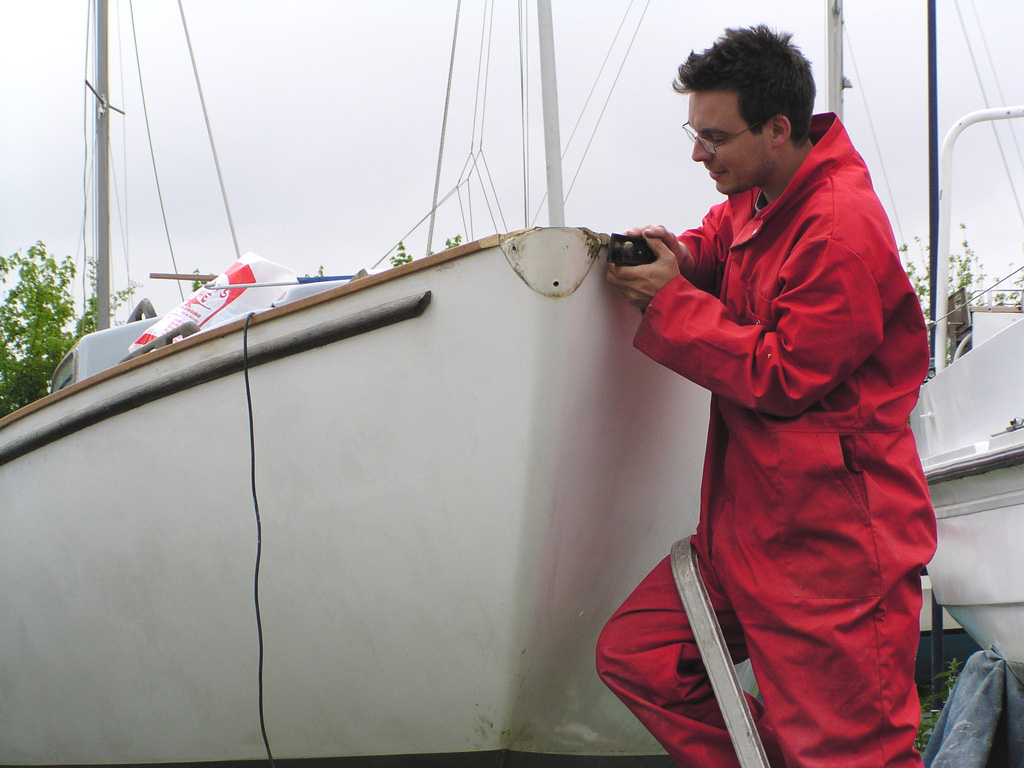

trimbow

Trimming the toerail to the bronze stemhead fitting

The iroko of the toerail and taffrail is not treated with anything but left to reach its natural silver grey colour. Once or twice a year it is gently washed – sometimes with oxalic acid solution – to remove dirt. Like teak, iroko is comparatively soft and easily scrubbed away if washed too energetically (that’s our excuse anyway!)
